The 53N Series Of Argon Arc Welding Gun Nozzles Have High Volume Resistivity
Product Overview

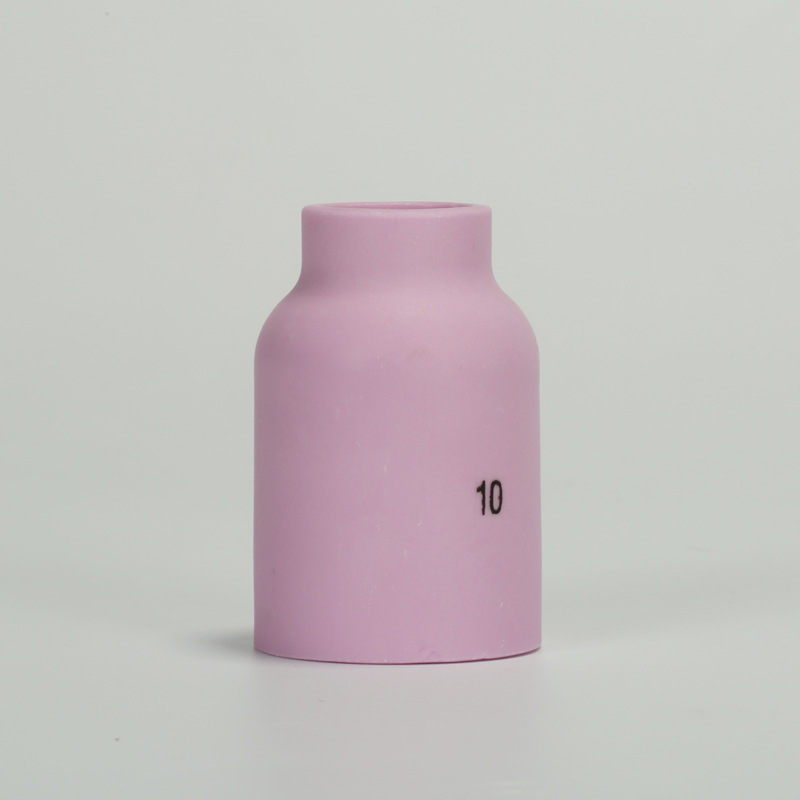

Alumina nozzle 53N series 10#
Alumina ceramics have better conductivity, higher mechanical strength and high temperature resistance. As a welding nozzle made of alumina ceramics, it has excellent high temperature resistance, high melting point, and no decline in mechanical properties. It can be used at high temperatures without affecting product performance or bursting. Good corrosion resistance, regardless of strong acid (except hydrofluoric acid), strong alkali (except hot alkali), inorganic organic salts and other conditions will not be affected.
The company has an independent plant, self-produced and sold, perfect technology and modern production workshop. Each process is produced strictly in accordance with the process, ensuring quality and quantity.
Product parameter table
| Size | Part Number | Length (mm) | Orifice (in) | Orifice (mm) | Torchdesign |
| NO 3 | 53N23 | 17 | 3/16 | 4.0 | 24 |
| NO 4 | 53N24 | 17 | 1/4 | 6.5 | 24 |
| NO 5 | 53N25 | 17 | 5/16 | 8.0 | 24 |
| NO 6 | 53N27 | 17 | 3/8 | 9.5 | 24 |
| Size | Part Number | Orifice (in) | Orifice (mm) | Torchdesign |
| NO 10 | 53N88 | 5/8 | 16.0 | 17/18/26 |
| NO 10L | 53N88L | 5/8 | 16.0x70 | 17/18/26 |
| Short | 53N89 | 15/16 | 24 | 14/18/26 |
| Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
-
Good wear resistance -
preservative -
Strong -
High hardness | - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
| Mechanical behavior | Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
| Thermal performance | Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | ……
|
Product advantages
- long lasting
- Good electrical insulation
- Strong thermal shock resistance
- Good thermal conductivity
- Strong moisture resistance
- High temperature resistance
- Good chemical stability
- High mechanical strength
Applications
- Shipbuilding, bridges, large-scale structural facilities
- Lighting industry
- Electronics and electric heating industry
Product packaging
Packed in carton
In addition to common sizes and specifications, our company accepts drawings and samples for customization. If necessary, please contact our company directly.
FAQ
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
Product Tags:
|
|

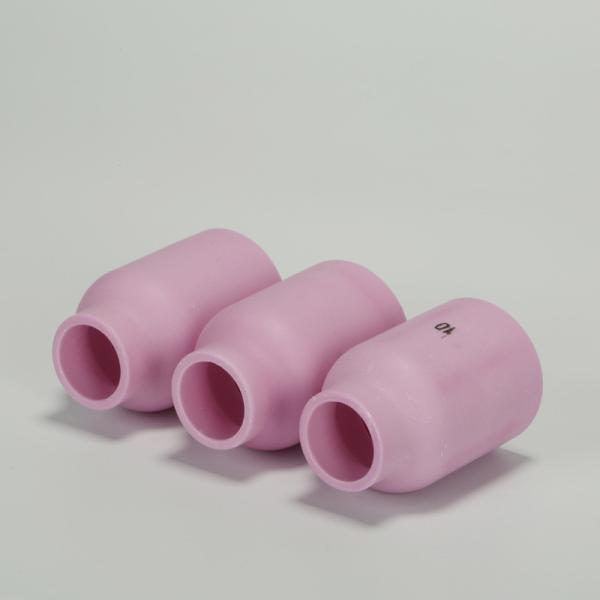

High Volume Resistivity 53N89 Alumina Ceramic Nozzle Images
|
